NeoProtect Module for WHMCS
This project integrates the NeoProtect API with WHMCS, allowing you to manage firewall rules, filters, and view attack history directly through your WHMCS interface.
Features

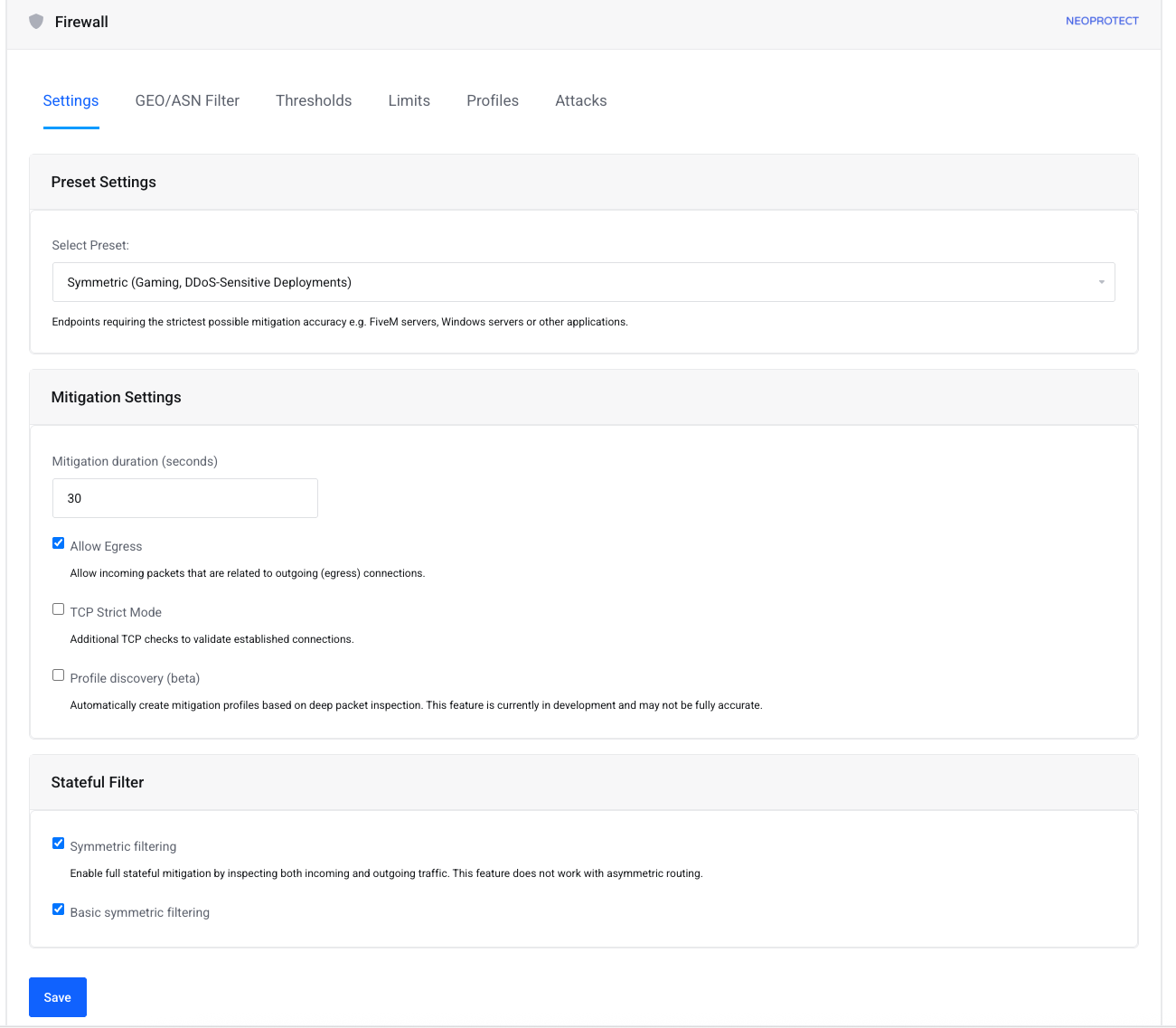

Firewall Management
-
Select IP to Manage: Select the IP address for which firewall settings and filters will be applied.
-
Mitigation Settings: Configure the mitigation duration, allow egress traffic, and enable TCP strict mode.
-
Stateful Filter: Enable full stateful mitigation, inspecting both incoming and outgoing traffic, with the option to enable basic symmetric filtering.
-
Thresholds Configuration: Set thresholds for various attack types, including TCP-SYN, TCP-ACK, UDP, fragments, and more.
-
Limit Configuration: Limit packets per second (PPS), bytes per second (BTS), and new connections per protocol (TCP, UDP, ICMP).
-
Predefined Mitigation Profile Selection: Apply predefined mitigation profiles tailored to different routing and threat scenarios.
-
Profile Discovery (Beta): Automatically suggest optimal mitigation profiles using deep packet inspection.
Attack Monitoring
-

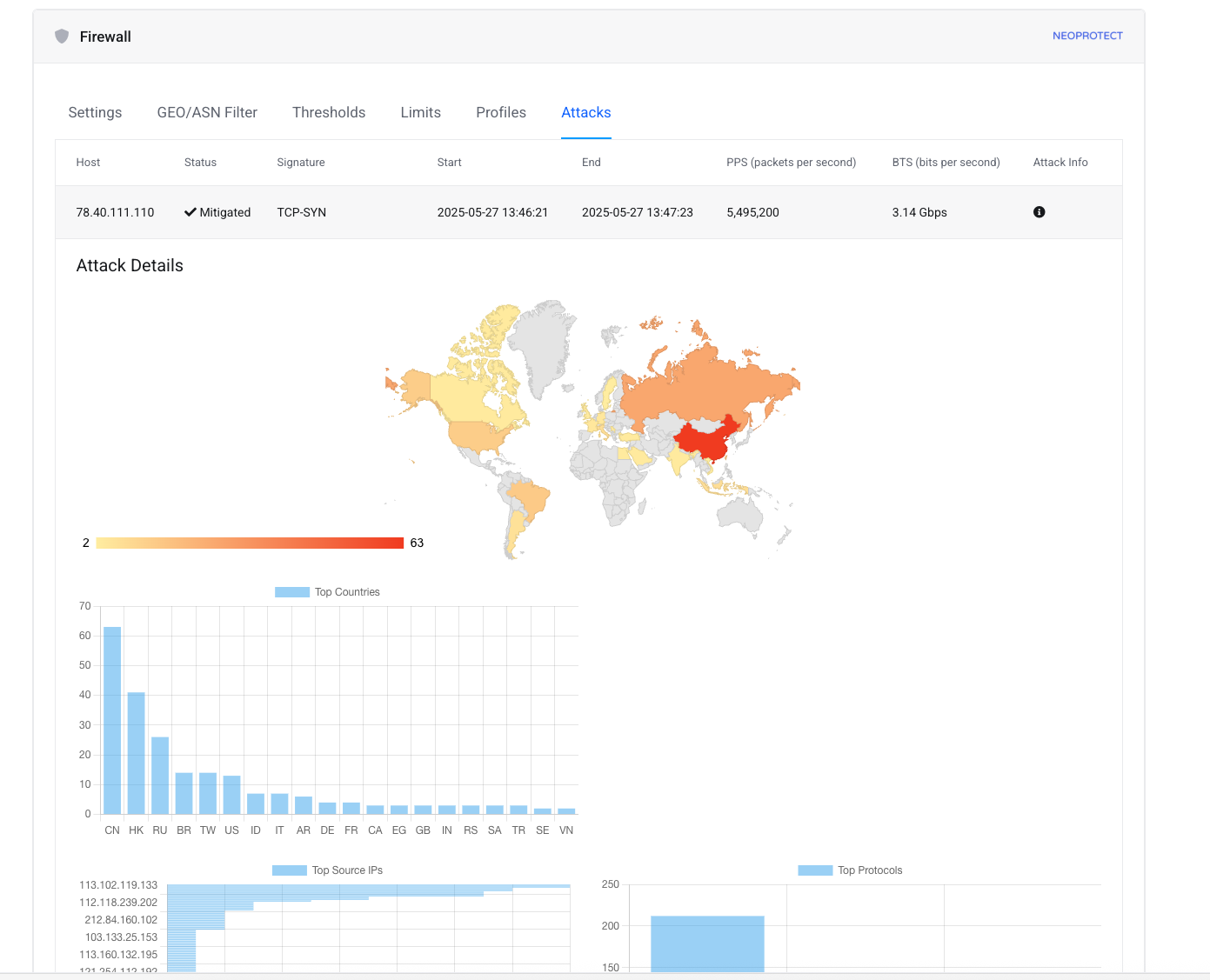

Attack History: View real-time updates of attacks, including the status, signature, and metrics such as packets per second (PPS) and bits per second (BTS).
-
Attack Viewer: “Attack Info” column with IP country mapping, source protocols, ASN, TTLs, ports, and more.
-
Automated Updates: Attack data is refreshed automatically every 60 seconds.
Filtering & Profiles
-
GEO / ASN Filtering: Enable or disable country or ASN blocking for incoming traffic. Users can whitelist or blacklist countries and ASNs to control access to their IP.
-
Profiles: Configure custom profiles to adjust firewall mitigation settings based on ports, protocols, and presets. Default action profiles (Filter or Drop) can also be set.
IP Ownership Verification
-
Secure Access: Before any action, the module verifies that the current WHMCS user owns the IP address through WHMCS’s internal API, ensuring only authorized changes are made.
Installation
-
Clone the Repository
Clone or download the repository into your WHMCS /modules/addons/
directory.
-
Name the Module Folder
Ensure the addon’s folder is named exactly neoprotect_module
. WHMCS will not detect the module if the folder name differs.
-
Configure API Key
Open the ajax.php
file and go to line 8. Replace the placeholder API key with your actual NeoProtect API key:
$api_key = "YOUR_NEOPROTECT_API_KEY_HERE";
-
Set the IP Range
Open the neoprotect_module.php
file and locate line 36. Configure these lines to specify the IP prefixes for your deployment.
For example, if your IP range starts with 45.
, add '45'
to the $allowedIpPrefixes
array.
-
Ensure WHMCS Compatibility
- Make sure your WHMCS installation is properly configured.
- Verify that the server has cURL enabled in PHP to handle API requests.
Usage
The module provides several AJAX actions to manage firewall settings and view attack history:
-
getFirewallSettings: Retrieves the current firewall configuration for a specific IP.
-
setFirewallSettings: Applies firewall rules to the selected IP, including mitigation settings, thresholds, and limits.
-
getAttackHistory: Fetches historical attack data for the selected IP.
-
applyFilter: Applies a GEO or ASN filter to the selected IP.
-
createProfile: Creates a custom profile for firewall settings, based on ports, protocols, and other preferences.
-
saveProfile: Saves a custom profile after configuration.
-
getProfiles: Lists available profiles for specific IPs.
-
getAttackInfo: Retrieves detailed statistics for a specific attack, including metadata such as TTLs, protocols, and ports.
-
getPresets: Returns available predefined mitigation profiles.
-
getProfilePresets: Lists suggested profile presets for the selected IP.
-
updateProfile: Updates an existing custom mitigation profile by profile ID.
-
deleteProfile: Deletes a specific custom profile by profile ID.
-
getInfo: Fetches general information about the selected IP.
-
getAttacks: Retrieves current or recent attack data for the IP.
-
saveDefaultAction: Saves the default mitigation action for the IP (e.g., filter or drop).
-
saveSettings: Applies advanced firewall configuration, including thresholds, limits, profile discovery options, and mitigation behavior.
-
saveAsnFiltering: Saves ASN and country-based filtering rules for the selected IP.
-
getCountries: Returns a list of supported countries for geographic filtering.
Theme Compatibility
This module is optimized for the Lagom2 theme. If you're using a different theme, modifications might be needed to adjust the template files for compatibility with the firewall management interface.
Security Considerations
-
API Key Protection: Ensure your NeoProtect API key is securely stored and not exposed publicly.
-
Access Control: The module uses WHMCS’s internal API to validate ownership of IPs, ensuring that only authorized users can modify the firewall settings of their associated IPs.
-
Data Validation: Always validate inputs before submitting requests to avoid invalid data that could potentially disrupt service.
Contributing
Contributions, issues, and feature requests are welcome! Feel free to fork the repository and submit pull requests to improve the module.
Acknowledgements
This module has been developed and maintained by Hostealo, a provider specialized in high-availability hosting and DDoS mitigation solutions.
For support, inquiries, or custom development, please visit our website or contact us directly.
